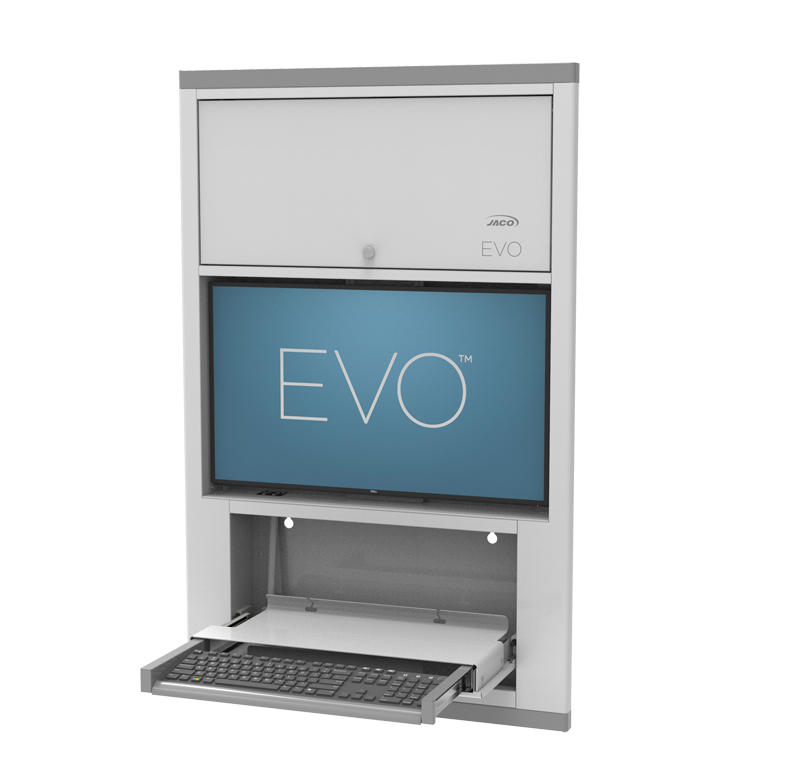

Jaco EVO™ Medical Wall Cabinet Computer Workstation

Space-saving big-screen wall mounted computer workstation

The new EVO WS-27 Wall Station is ready whenever nurses and clinicians need it – and stays out of the way when they don’t. It holds a flat-screen display up to 27” for big, clear, high-resolution display of EHR applications, medical images and more. Choose from 2 mounting options: flush-mounted to project just 4” from the wall, or embedded to project just 1” from the wall for the ultimate space-saving, professional installation.

Features & Benefits

  • Heavy-duty—built to last from aircraft-grade metal
  • Holds flat-panel LCD/LED display up to 27”, plus thin-client or zero-client CPU, keyboard and mouse
  • Modular 2-piece design with intelligent cable management for easy power connection and wall installation

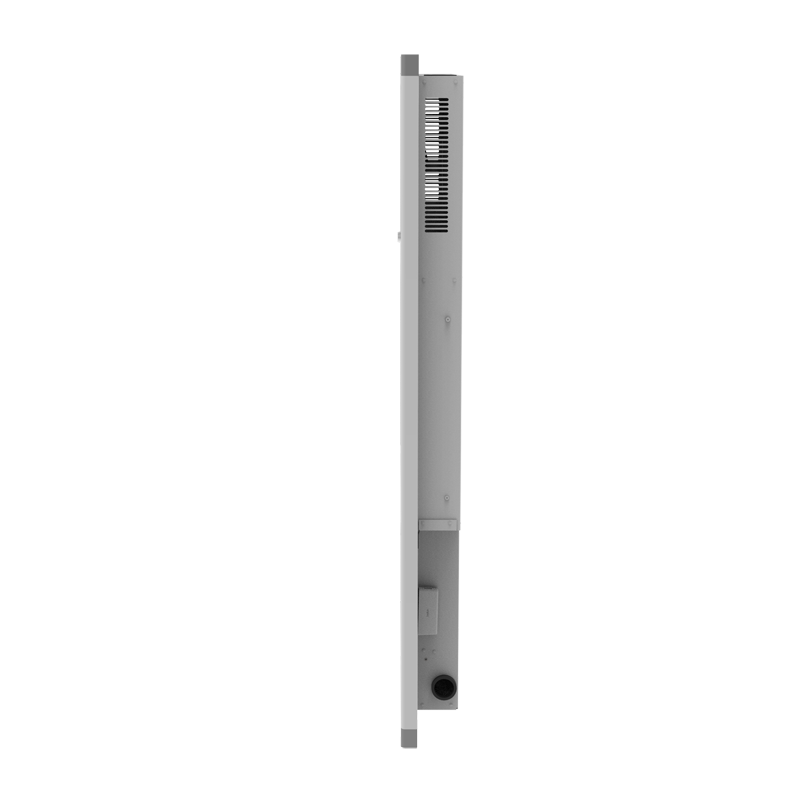

  • Slim form factor: Mounts flush to project just 4” from the wall, or can be embedded to project just 1” from the wall
  • Foldable retractable keyboard tray includes spacious 19” x 9” worksurface—rare in a wall mounted computer station
  • Superior infection control—non-porous antimicrobial powder coat on all metal surfaces stands up to medical-grade chemical and UV sterilization
  • Low maintenance design, with a 10-year warranty

Part Number
Jaco Wall Station

Jaco Wall Stations provide clinicians with a secure and effective way to access vital information and maximize care. Wall Stations are manufactured out of lightweight, aircraft-grade aluminum with a non-porous, anti-microbial powder coat surface for optimal infection control. All models are designed to be mounted in hallways and other tight spaces, and are easy to install and maintain.

WALL STATION, 27 INCH WIDE

Durable Ergonomic Design
JACO's Wall Stations are design with lightweight aircraft-grade aluminum to provide up to 10 years of use in a demanding healthcare environment. We have also engineered them to maximize productivity and minimize physical effort. The WS-27 model for computers includes a retracting keyboard designed to reduce operator fatigue and discomfort and meet ergonomic distance to screen standards to safeguard clinician's health.

Compliant and Efficient
All JACO Wall Stations use a smooth, solid, non-porous powder coat surface which allows for easy cleaning and proper infection control. Additionally, by maintaining a depth less than 4”, it meets healthcare regulations for in-room and hallway use, and the completely hidden cable management eliminates cord tangle and clutter for nurse safety and IT maintenance.

Customization
All JACO products are finished with an antimicrobial powder coat finish. We offer ten accent colors for trim caps and the keyboard tray. Using our in-house printing capabilities, we can produce multi color logos that are applied to the product. We are able to take your logo and adhere them directly to metal surface transforming them into a truly finished solution that can withstand a variety of sanitation and cleaning methods.

Made-In-America
Leveraging our world-class automated fabrication equipment, we build working prototypes of all new products, right from our facility in Franklin, MA. Our team of industrial designers and CAD engineers will work directly with our fabrication technicians to review the prototypes every step of the way to enhance the products, and can provide custom mounts and options to make the product that fits your needs and solves your problems.

WS-27

View All Accessories
Request More Info

Overall Dimensions
46”H x 29.5”W x 4”D

Product Weight
25 lbs.

Monitor Display Opening
26.5”W x 16.25”H

Max. LCD / LED Monitor Size
27” diagonal

Compatible VESA patterns
75 mm, 100 mm

Computer Bay Size
12”H x 26.5”W x 3”D

Worksurface Dimensions
19”W x 9”D

Maximum Reach / with Extension
8”

Distance from Wall Flush / Embedded
4” / 1”

Overall Weight Capacity
50 lbs.

Warranty
10-year limited

EVO WALL ARMS ARE COVERED BY THE FOLLOWING JACO WARRANTIES:

  • 10-Year Warranty on all Jaco-manufactured standard structural components and dress covers
  • 7-Year Warranty on all Jaco-manufactured optional components and accessories
  • 3-Year Warranty on all Jaco electrical components
