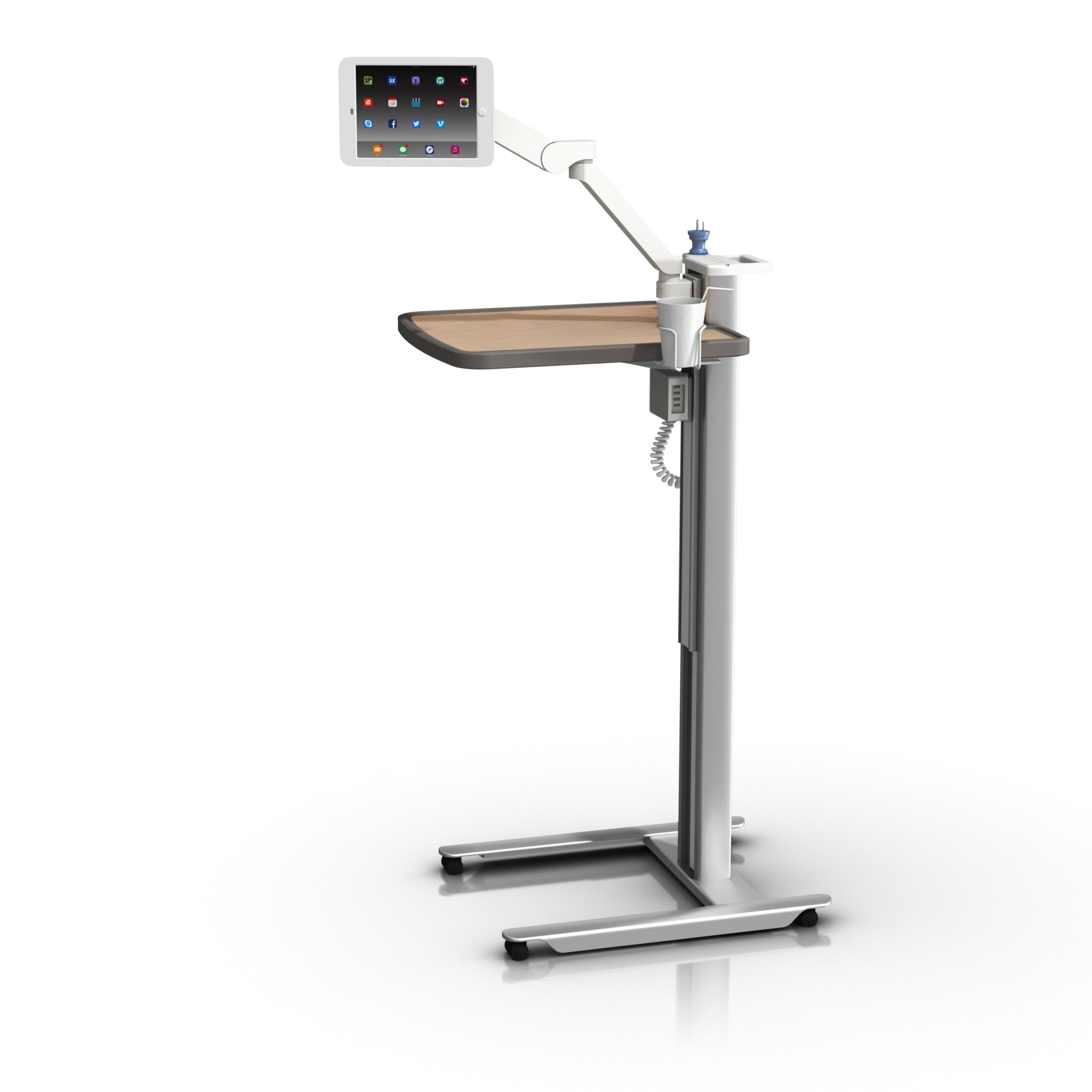

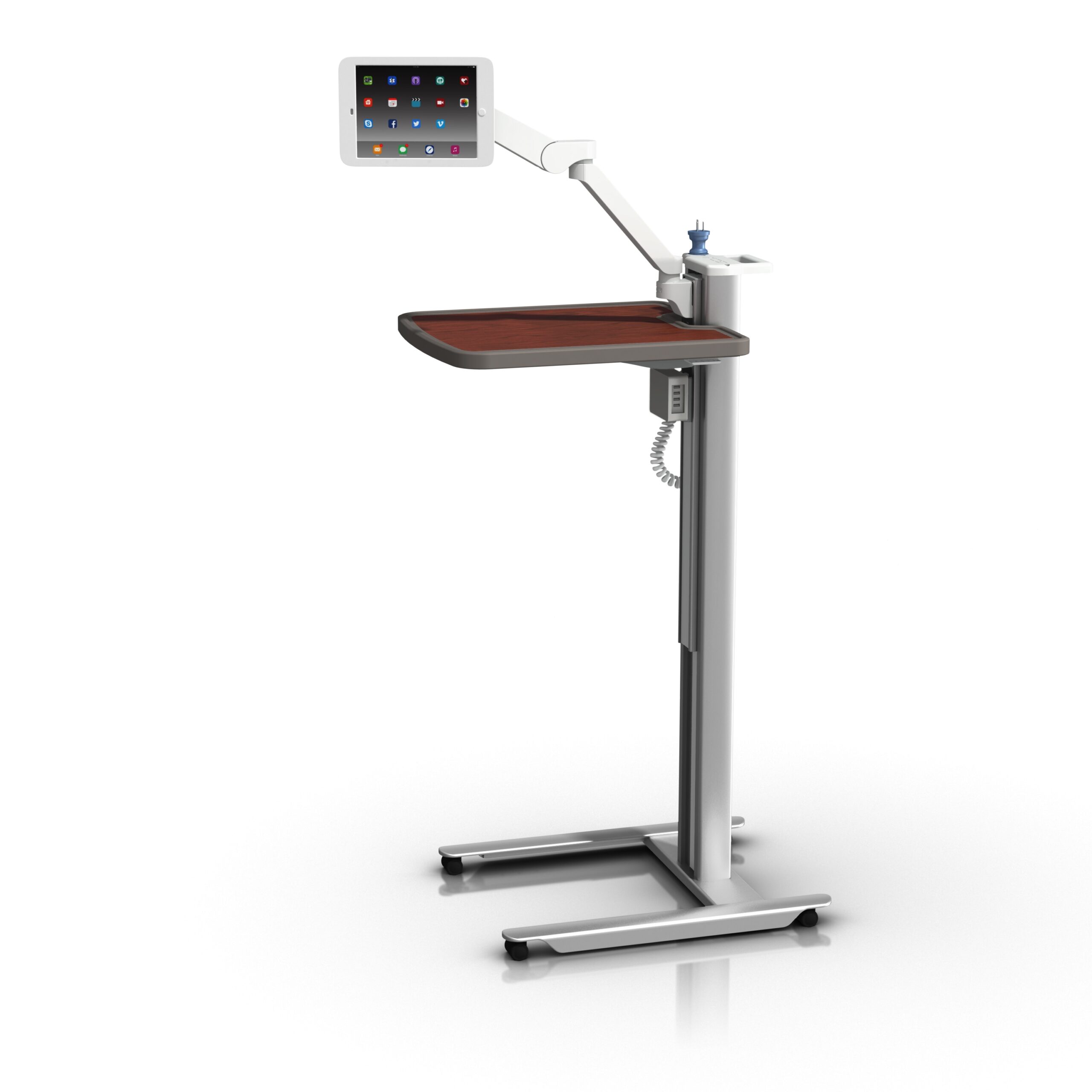

Compact Patient Table with Light Weight Tablet Arm
- Ideal for Infusion Areas
- Durable, adjustable-height overbed table for patient use
- Integrated Variable Height Arm for tablet device with full-motion adjustability for easy positioning and patient access
- Options include USB charging module compatible with most tablets and mobile phones
Note: Tablet enclosure sold separately
Core Kit Options
Technical Specifications
- Tabletop material: Laminate
- Tabletop dimensions, overall w/d: 19.25 x 22″ / 48.9 x 55.8
- Tabletop dimensions, recessed area: 18 x 20″ / 45.7 x 50.8 cm
- Height adjustment range: 14.75″ / 37.5 cm
- Tabletop height, minimum to maximum: 27.75 to 42.5″ / 70.5 to 108 cm
- Main column height: 46” / 116.8 cm
- Base clearance height: 2” / 5.1 cm
- Caster diameter: 1.4” / 3.6 cm
- Maximum Load for Laiminate Tabletop: 6 lb / 2.7 kg
General Features
- Low-profile, U-shaped base for bed clearance and ease of movement
- Seamless, durable synthetic laminate surface with recessed area to contain spills
- Height adjustable via convenient, easy-to-use hand controls
- Anodized aluminum construction for durability and ease of cleaning
- Integrated, industry-standard GCX channel profile to facilitate IT hardware integration
- Accessory track to integrate accessories (storage, USB charging module, medical-grade power strip)
- Handle for easy positioning with cradle for power cord
- VHM-T Variable Height Arm for tablet device with full motion adjustment for easy positioning
- Shown with optional tablet enclosure
Part NumberOBT-0007-82
OBT-0007-83
Laminate Tabletop with Protective Edge Color Options
- Tabletop material: Laminate
- Tabletop dimensions, overall w/d: 19.25 x 22″ / 48.9 x 55.8
- Tabletop dimensions, recessed area: 18 x 20″ / 45.7 x 50.8 cm
- Tabletop height, minimum to maximum: 27.75 to 42.5″ / 70.5 to 108 cm
- Maximum Load for Laiminate Tabletop: 6 lb / 2.7 kg
Part NumberOBT-0007-71
OBT-0007-72
OBT-0007-73
OBT-0007-74
Recommended Accessories
Apple iPad Tablet Enclosures with Locking/Charging Dock
*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL
- VESA 75mm Compatible
- Color: White
- Includes: Tablet Enclosure with Locking Charging Dock, Mounting Hardware and (2) Two Keys
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.
Part NumberLIL-0003-24
LIL-0003-28
LIL-0003-29
LIL-0003-30
LIL-0003-33
Apple iPad Tablet Enclosures
*How to find model number: go to SETTINGS/ GENERAL/ ABOUT, then click on MODEL
- VESA 75mm Compatible
- Color: White
- Includes: Tablet Enclosure, Mounting Adapter, Charging Cable and Mounting Hardware
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories.
Part NumberLIL-0004-28
LIL-0004-29
LIL-0004-30
LIL-0004-33
Samsung Tablet Enclosures
- VESA 75mm compatible
- Mounts in portrait or landscape orientation
Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories
Part NumberLIL-0003-32
LIL-0004-32
SA-0024-20
SA-0024-17
SA-0024-18
Microsoft Tablet Enclosures
Part NumberMS-0001-01
USB Charging Modules for Channel
- 5-8’ Hospital-Grade Coiled Power Cord
- Channel Slide
- Compatible with most tablet and mobile devices
Part NumberUSB-0001-03
USB-0002-03
Power Strip
Part NumberSR-0001-07
Part NumberOBT-0007-16
Part NumberRST-0007-26
Datasheets
Dimensional Drawings
Installation Guides
-
Mountable Tablet Enclosure with Locking Charging Dock Hardware Installation Instructions
DU-LIL-0003-XX -
Mountable Tablet Enclosure Hardware Guide
DU-LIL-0004-XX -
Tablet Enclosure Microsoft Surface 4 Pro and 2017 Surface Pro 75/100 VESA
DU-MS-0001-01 -
Patient Engagement Over Bed Table with VHM-T
DU-OBT-0006-82 -
Cup Holder Accessory Kit
DU-OBT-0007-16 -
VHRC/RC Rear Column Mounting Cleat Instructions
DU-RST-0007-26 -
Samsung Galaxy Tab E 9.6”
DU-SA-0024-17 -
Tablet Enclosure Samsung Galaxy Tab S3 75/100 VESA
DU-SA-0024-18 -
Flush Wall Mount Power Strip with Coiled Cord Assembly
DU-SR-0001-07 -
USB Charging Module with 5’/1.52m – 8’/2.44m Coiled/Straight Cord Installation Guide
DU-USB-MOUNT -
VHM-T Variable Height Arm with Angled Rear Extension
DU-WS-0017-01
Key Replacement Kit for Lilitab PRO Tablet Enclosures
LIL-0002-01
Key Replacement Holder/Extender for Lilitab Pro Tablet Enclosures
LIL-0002-02
VHM-T Replacement Cover Kit (version without Extension)
WS-0017-40
VHM-T w/ Angled Extension Replacement Cover Kit
WS-0017-42
VHM-T Channel Slide Replacement Cover Kit
WS-0017-45
Create Product Datasheet
Compact Patient Engagement Table with VHM-T Fusion Maple
Compact Patient Engagement Table with VHM-T- Gray
Compact Patient Engagement Table with VHM-T- White
Compact Patient Engagement Table with VHM-T- Valencia
Compact Patient Engagement Table with VHM-T

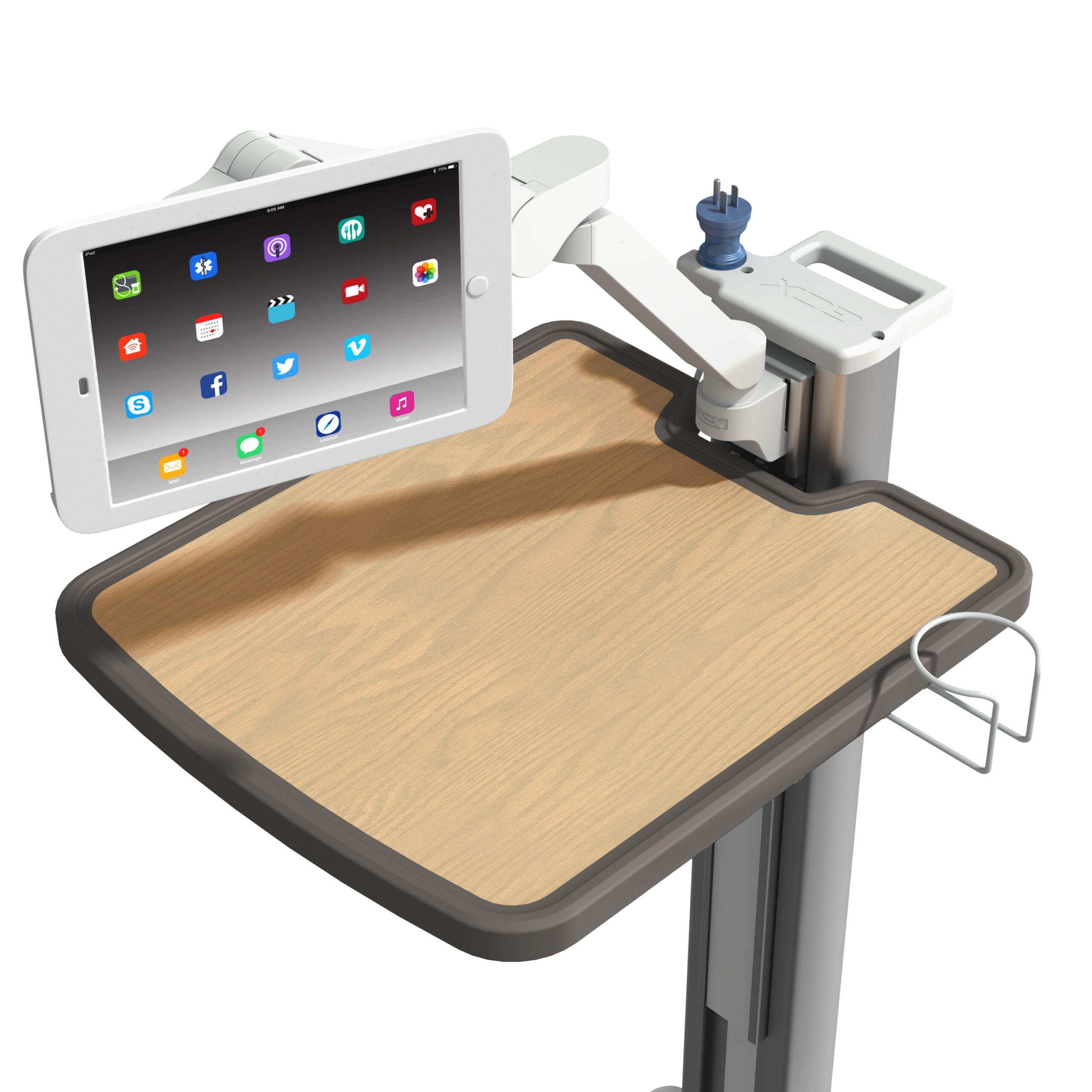

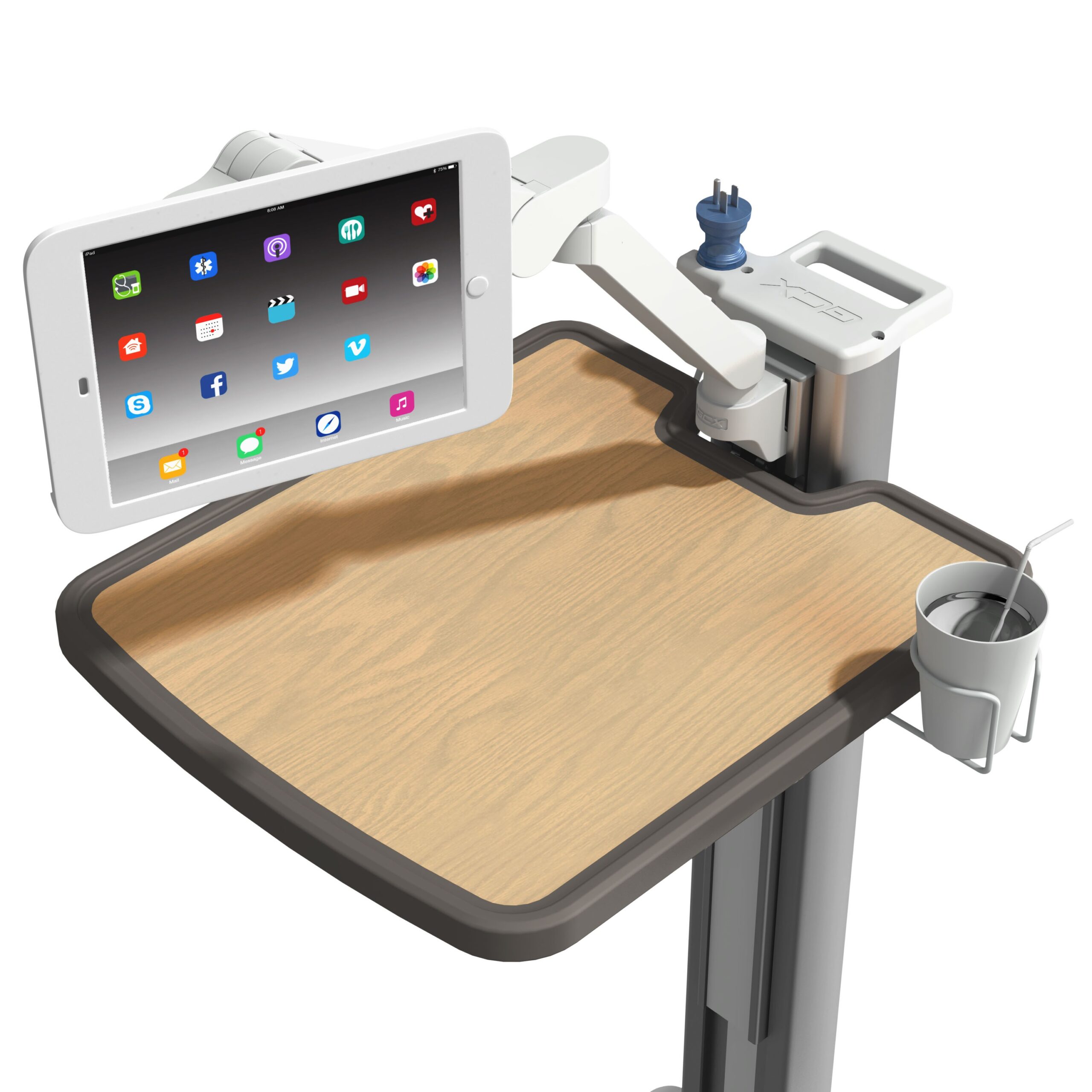

Cup Holder for Compact Patient Engagement Table
Cup Holder for Compact Patient Engagement Table
Cup Holder for Compact Patient Engagement Table
Cup Holder for Compact Patient Engagement Table
