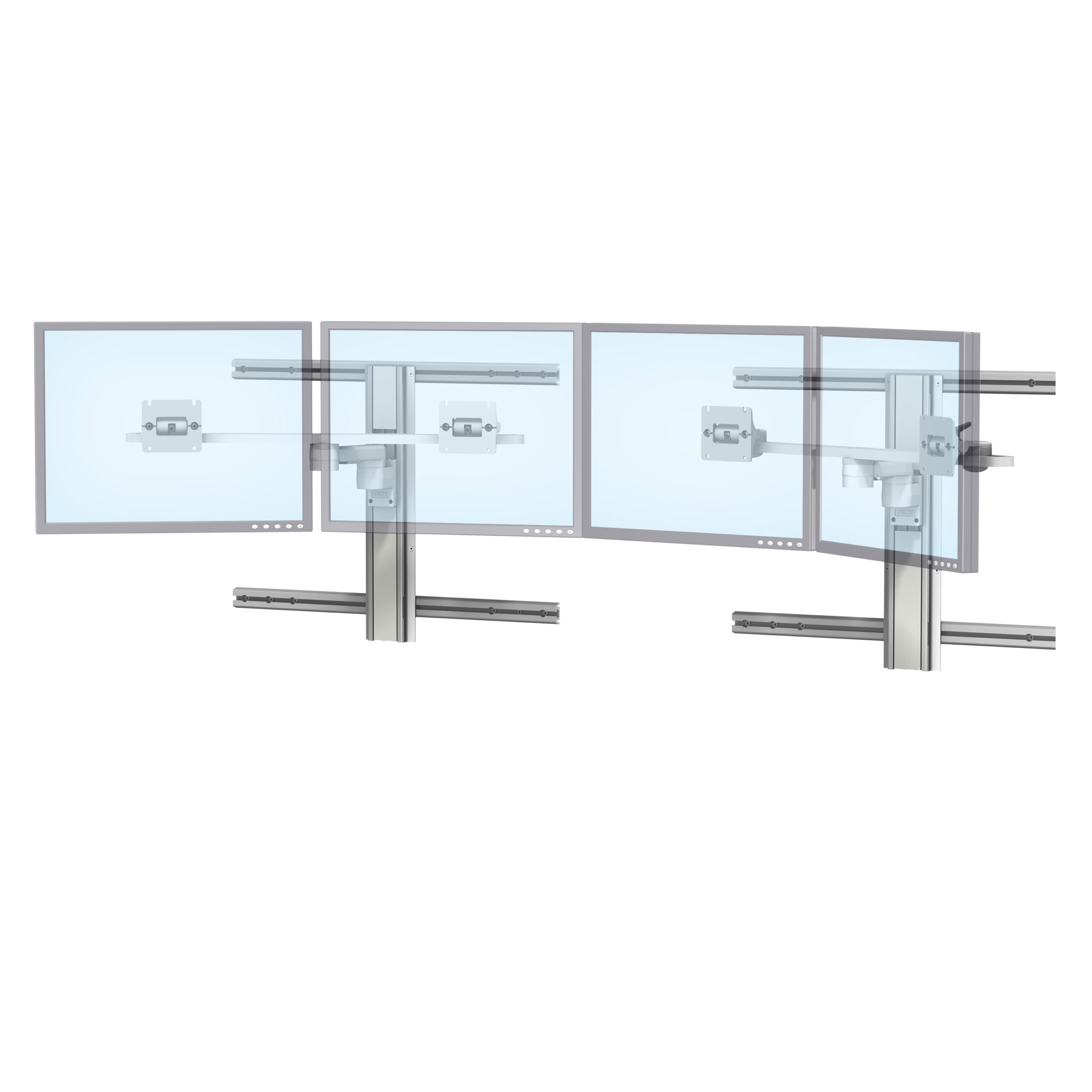

4 Display Dual Bar8in Arm2 Channel Horizontal Sliders Loaded LG

Create Datasheet

Select options on the right and create a customized datasheet.

Request More Info

Four Monitor Telemetry Central Station – Two Monitors Per Mount

M Series Swivel Front End Details
M Series Swivel-Only Arms

Part Number

WMM-0005-04

WMM-0005-01

WMM-0005-02

WMM-0005-03

WMM-0005-05

Dual mntr mount 800 Details
Dual Monitor Mounts

  • Attaches to a support arm (M-Series, or VHM Variable Height Arm) or roll stand allowing two (2) flat panel displays to be mounted side-by-side
  • Horizontal spread adjustment accommodates displays with enclosures up to 21″ / 53.3 cm in width
  • Provides swivel (+/- 20 degrees or 360 degrees) at connection point to arm (not cart) and independent tilt/swivel adjustments for each display
  • Product weight: 5.5 lbs/2.5 kg
  • Maximum Load per Display: 30 lb / 13.6 kg


Part Number

FLP-0008-11

FLP-0008-28

Recommended Accessories
WC 0002 Details
Channel Options

  • Seismic channel
  • Includes mounting hardware and instructions
  • OSHPD Pre-Approval: WC-0002-03, -05, -07, -09, -11, and -15.


Part Number

WC-0002-03

WC-0002-05

WC-0002-07

WC-0002-09

WC-0002-11

WC-0002-13

WC-0002-15

WC-0002-17

Spanch1911 Details

  • When adequate backing or ideal stud locations are not present, these spanning rails can be attached to existing studs.
  • Two (2) 26″ / 66 cm spanning rails
  • 19″ / 48.3 cm channel
  • The channel can be positioned at any location along the rails
  • Four (4) 21″ / 53.3 cm spanning rail covers (field cut to desired length)
  • Maximum load: 40 lbs / 18.1 kg
  • OSHPD Pre-Approval OPM-0163-13


Part Number

WC-0002-29

WC-0002-30

QCT 0017 Details
Dual Channel Counter Top Mount

  • Features two channel profiles to mount arms and accessories plus two side raceways with covers for cable management
  • A pass-through access port in the channel profile area allows cable access from inside the column and to both sides
  • Channel profiles can be positioned for left/right or front/back orientation to accommodate different arm combinations and application requirements
  • 100 lbs/45.4 kg maximum load at channel profile (flush to column)
  • 50 lbs/22.7 kg maximum load 24″/61 cm from the channel profile*
  • 8 x 8”/20.3 x 20.3 cm base plate plus an additional backing plate for secure installation

NOTE: Assumes adequate anchorage of column. Adequate anchorage is the responsibility of the purchaser.


Part Number

QCT-0017-02

QCT-0017-03

QCT-0017-04

QCT-0017-05

Temp file 24 Dual Ceiling Mount LG1 Details
Dual Channel Ceiling Monitor Mount

  • Dual channel columns allow standard GCX wall mounting solutions to be used for ceiling mount applications
  • Features two channel profiles to mount arms and accessories plus two side raceways with covers for cable management
  • Port hole at the top allows cables to be rundown the anchorage pipe and inside the column
  • Pass-through access port in the channel profile area allows cable access from inside the column and to both sides
  • Mounts to 1.5″/3.8 cm NPT pipe (not included)
  • Channel profiles can easily be positioned for left/right or front/back orientation to accommodate different arm combinations and application requirements
  • Not for use with any GCX VHM P/PL Variable Height Arm with an Extension
  • 100 lbs./45.4 kg maximum load at channel profile (flush to column)
  • 50 lbs/22.7 kg maximum load 24″/61 cm from the channel profile*
  • 360 degree swivel adjustment for optimal positioning

NOTE: Assumes adequate anchorage of column. Adequate anchorage is the responsibility of the purchaser.


Part Number

CM-0010-01

CM-0010-02

CM-0010-03

GCX hires wm 0007 41 mnt02 LG Details
CPU Channel Mount Options

Part Number

WM-0007-40

WM-0007-41

WM-0007-42

WM-0007-43

Wm 0024 03 unld sm Details
Power Supply Mount

Part Number

WM-0024-03

WM-0024-05

Power Strip Wall Channel Web Details

Part Number

SR-0001-03

VHRC rst00073inch Web Details
Cable Management Options

  • Side raceways keep cables organized and clean
  • Will not work on Variable Height Channel (VHC)


Part Number

RST-0007-80

RST-0007-81

RST-0007-58

Reset Choices Request More Info
