Philips IntelliVue MX600/700/800 on Penlon Prima SP2/SP3

Details

Part Number

Penlon SP2/SP3 Top Shelf Horizontal Channel

26″/66 cm Channel

PNL-0001-02

Details

Part Number

Philips IntelliVue Low Profile Counter Top/Horizontal Channel Mount (for Monitor only)

Counter top or horizontal channel low profile mount
Includes tilt/swivel adjustments
1.45″/3.7 cm post, 3.25″/8.3 cm – overall height from bottom of base plate to top of GCX adaptor

AG-0018-38

Details

Part Number

Secondary Counterweight

Counterweight provides an additional 60 lbs/27.2 kg

DR-0014-05

Details

Part Number

36 lb / 16.3 kg Counterweight Kit for GCX Channel

DR-0026-99

Details

Part Number

M Series 12" / 30.5 cm Pivot Arm with VESA Mounting Plate

M Series Arm offers swivel/tilt adjustments and two (2) pivot points for lateral adjustability
Features range of motion from flush to full extension, and cable management
VESA® FDMI™ 75/100 mm compatible
Tilt mechanism maximum load: 30 lbs/13.6 kg
Total arm maximum load: 60 lbs/27.2 kg
Product Weight: 3 lbs/1.4 kg

NOTE: Channel sold separately

Pivot point at the wall channel for lateral adjustability and swivel adjustment
Range of motion from flush to full extension
Cable management
VESA® FDMI™ 75/100 mm compatible
Max. load, tilt mechanism: 30 lb / 13.6 kg
Max. arm load: 60 lb / 27.2 kg
Weight: 2.8 lb / 1.3 kg
Available sizes: 8″ / 20.3 cm, 12″ / 30.5 cm and 16″ / 40.6 cm

FLP-0009-02

Details

Part Number

6”/15.2 cm Fluted Down Post for M Series/VHM Arms

6″/15.2 cm down post attaches below M/VHM arms

6″ / 15.2 cm fluted down post for attachment of devices with a clamp interface
1.25″ / 3.2 cm diameter
For M / VHM/ VHM-P/PL Series arms
Maximum Load: 25 lbs / 11.3kg

6″ / 15.2 cm down post attaches below M/VHM arms

WMM-0006-01

Recommended Accessories

Details

Part Number

G1/G5 Horizontal Channel Low Profile Mount

Fixed low profile G1/G5 mount
Requires Philips G1/G5 mounting adapter

AG-0018-39

HP 0053 08 Flexible Module Server Hooks LG

Details

Part Number

FMS 5-Hook Cable Management

5-Hook cable management
Mounts to the FMS housing

Note: For Use with 8-Slot FMS Only

HP-0053-08

Reset Choices Request More Info

Tip Stability Warning

GCX manufactures mounting hardware for a variety of patient monitoring equipment and related devices. The configurations shown are provided for reference only and are intended to show the components available for building a complete workstation. Due to the significant variations in anesthesia machines and related equipment, GCX makes no claims regarding the tip stability or overall safety of the final configuration. It is the responsibility of the healthcare institution to ensure that the configuration—the anesthesia machine and all components set on, or mounted to, it—is safe.

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Approach

Our Expertise

Modalities

Care Area Solutions

IT and EMR Solutions

Medical Device Solutions

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Accessories

Approach

Modalities

Our Expertise

Technical Support

On-Site Services

Resource Library

Who We Are

News & Noteworthy

Create Datasheet

Philips IntelliVue MX600/700/800 on Penlon Prima SP2/SP3

Recommended Accessories

Tip Stability Warning

Installation Guides

Create Datasheet

Philips IntelliVue MX600/700/800 on Penlon Prima SP2/SP3

Recommended Accessories

Installation Guides

Create Product Datasheet

Email This Product Configuration

Product Information Request

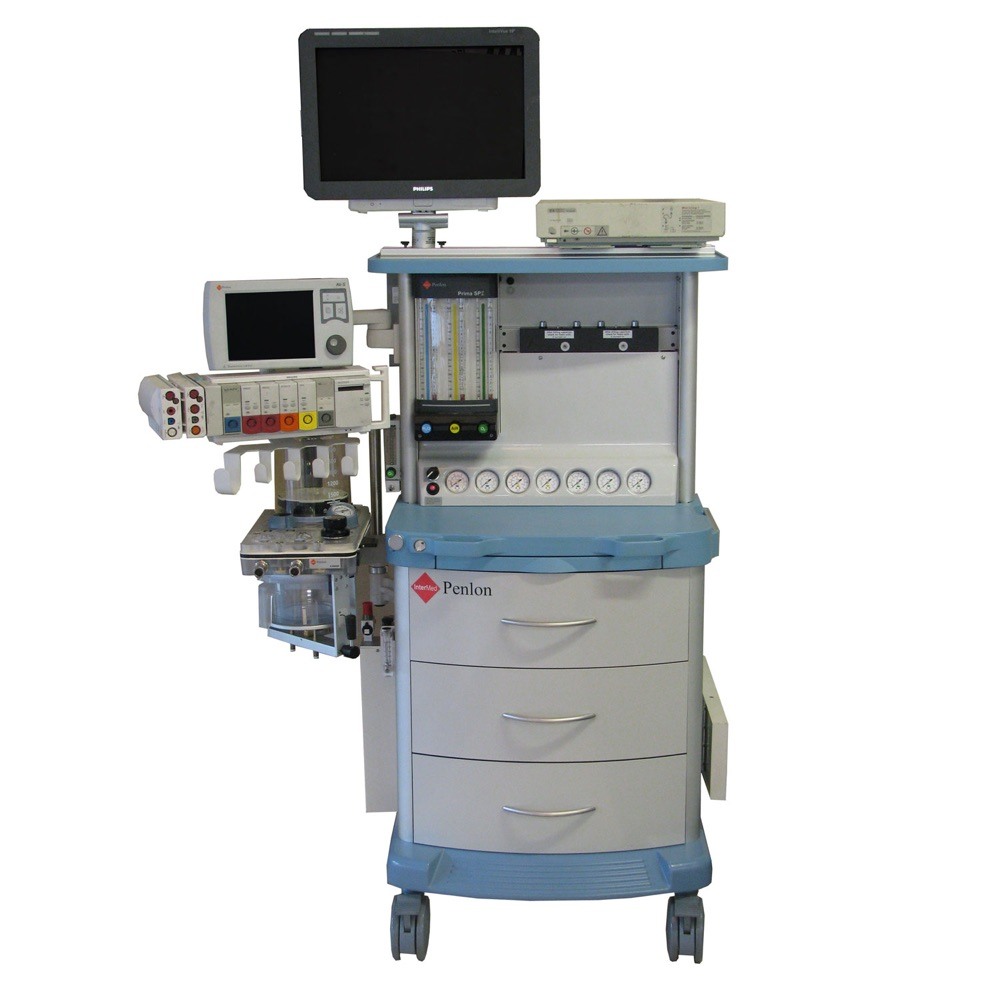

Mx 800 with AGMWEB
