Philips IntelliVue MX600 / MX700 / MX800 Ceiling Mount on VHM-PL Variable Height Arm

Create Datasheet

Select options on the right and create a customized datasheet.

Request More Info

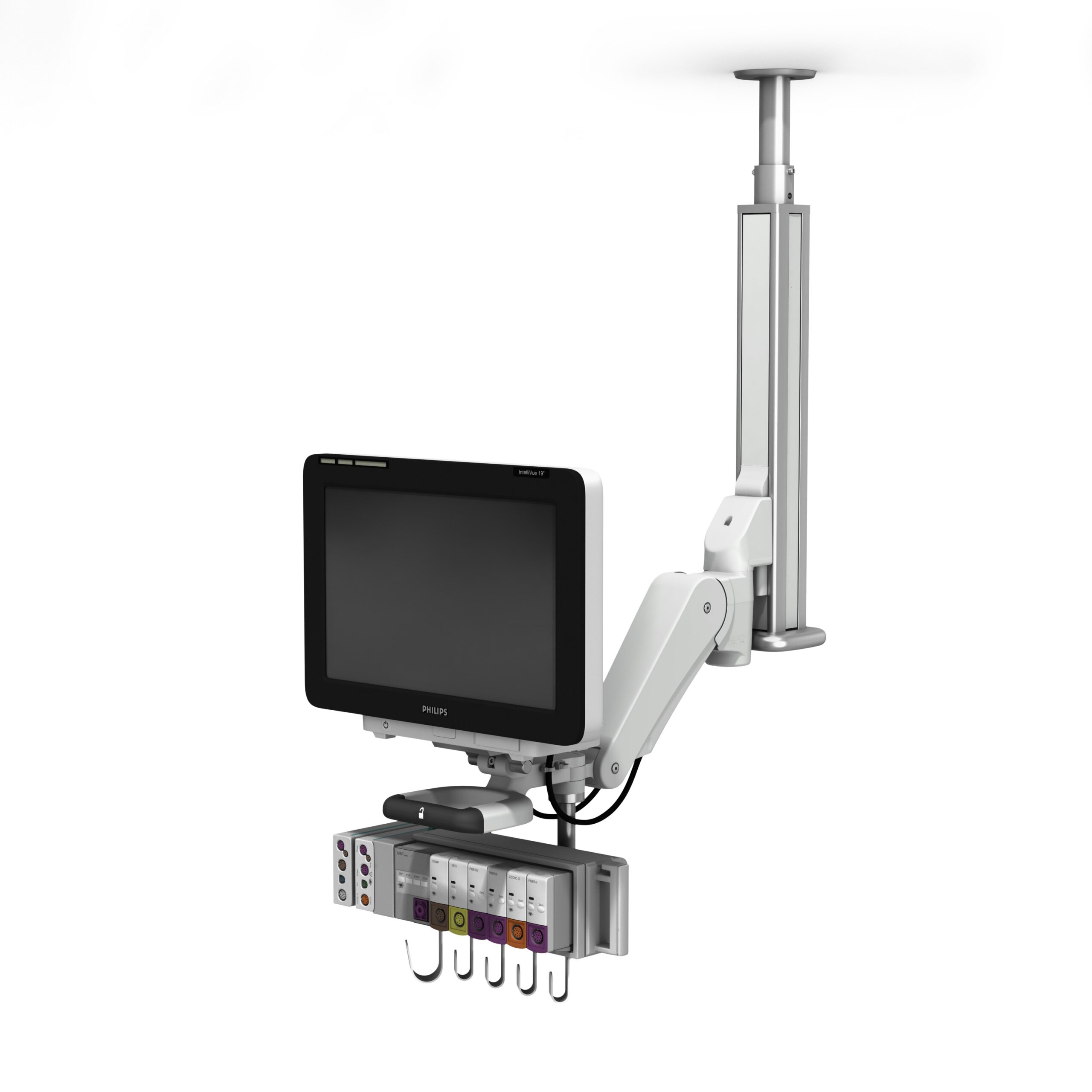

Philips IntelliVue MX600-850 with FMS or Single FMX-4 on Ceiling Mount on VHM-PL Variable Height Arm

Note: this solution is only compatible with Philips FMS or single FMX-4

Temp file 24 Dual Ceiling Mount LG1 Details
Dual Channel Ceiling Monitor Mount

  • Dual channel columns allow standard GCX wall mounting solutions to be used for ceiling mount applications
  • Features two channel profiles to mount arms and accessories plus two side raceways with covers for cable management
  • Port hole at the top allows cables to be rundown the anchorage pipe and inside the column
  • Pass-through access port in the channel profile area allows cable access from inside the column and to both sides
  • Mounts to 1.5″/3.8 cm NPT pipe (not included)
  • Channel profiles can easily be positioned for left/right or front/back orientation to accommodate different arm combinations and application requirements
  • Not for use with any GCX VHM P/PL Variable Height Arm with an Extension
  • 100 lbs./45.4 kg maximum load at channel profile (flush to column)
  • 50 lbs/22.7 kg maximum load 24″/61 cm from the channel profile*
  • 360 degree swivel adjustment for optimal positioning

NOTE: Assumes adequate anchorage of column. Adequate anchorage is the responsibility of the purchaser.


Part Number

CM-0010-01

CM-0010-02

CM-0010-03

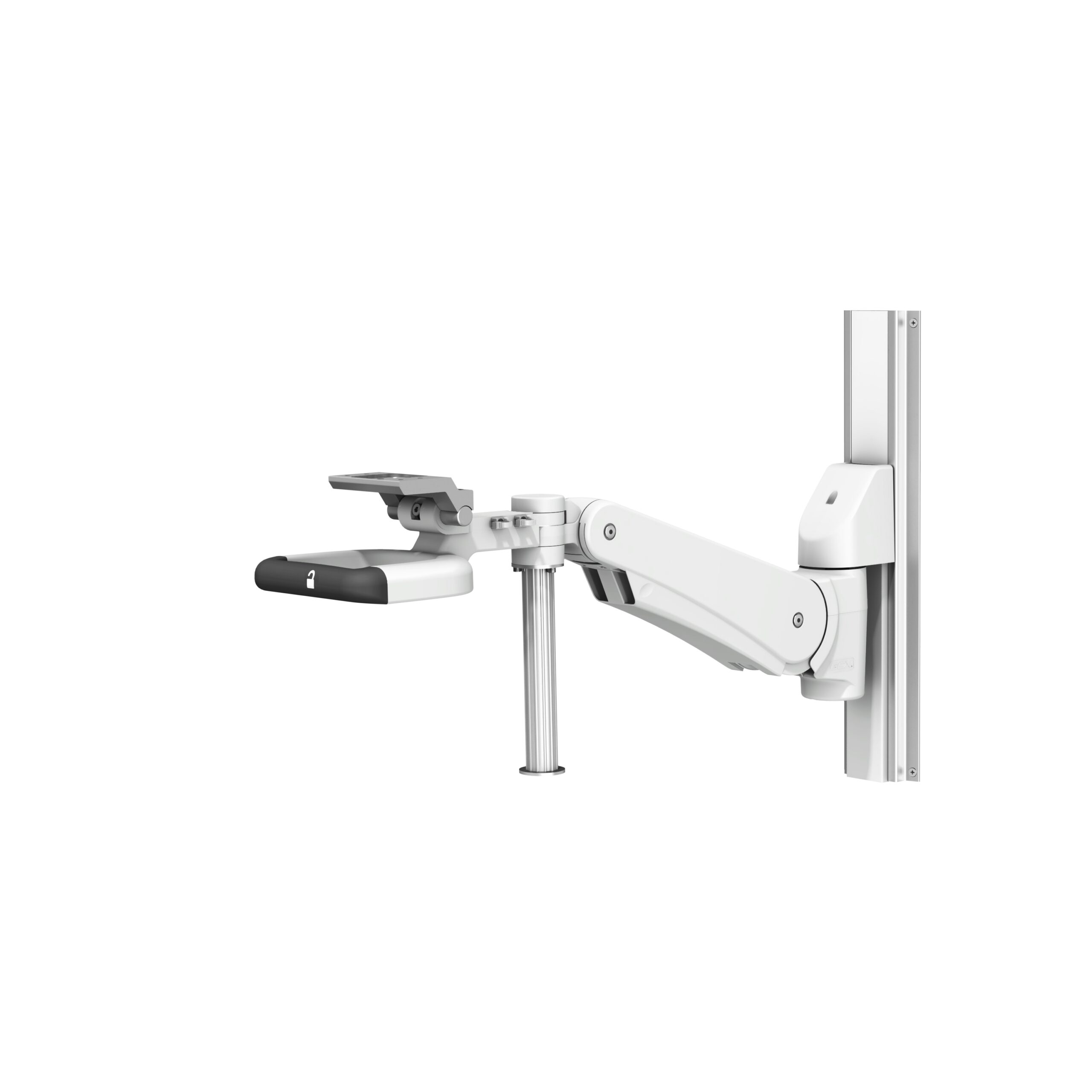

PH 0077 03 Mx800 fms Down Post U Details

Part Number

PH-0077-03

Recommended Accessories
VHM Hook Web Details

Part Number

WMM-0006-04

HP 0053 08 Flexible Module Server Hooks LG Details

Part Number

HP-0053-08
