Ultrasound Tablet Roll Stand

Ultrasounds are migrating from cumbersome machines to app-based procedures that require only an off-the-shelf tablet and an ultrasound wand (oh, and Wi-Fi). We have created new accessories to hold gel bottles and ultrasound probes that can attach to any of our tablet roll stands.

Details

Part Number

Tablet Roll Stand

Tablet cradle/enclosure sold separately

RS-0014-14

Details

Gel and Probe Cup Mounts

Part Number

Single Probe Cup Mount Kit

Probe Cup
- Cup Inside Diameter: 1.65″ / 4.18 cm
Channel slide
1.25” and 2” Clamping Block

PRB-0001-83

Dual Probe Cup and Single Gel Cup Mount Kit

Two Probe Cups
- Cup Inside Diameter: 1.65″ / 4.18 cm
One Gel Cup
- Cup Inside Diameter: 2.1″ / 5.33 cm
Channel slide
1.25” and 2” Clamping Block

PRB-0001-85

Single Gel and Probe Cup Mount Kit

One Gel Cup
- Cup Inside Diameter: 2.1″ / 5.33 cm
One Probe Cup
- Cup Inside Diameter: 1.65″ / 4.18 cm
Channel slide
1.25” and 2” Clamping Block

PRB-0001-89

Recommended Accessories

Details

Part Number

RAM X-Grip Universal 10" / 25.4 cm Tablet Holder

VESA 75mm compatible
Minimum Tablet Width: 6.25″ / 15.9 cm
Maximum Tablet Width: 8.1” / 20.6 cm
Maximum Tablet Depth: 0.875″ / 2.2 cm
Maximum Tablet Length (WITHOUT additional included supports): Unlimited
Maximum Length (WITH additional included supports): 10.25″ / 26 cm
Includes Slide-In Mounting Adapter
Spring loaded cradle expands and contracts for perfect fit of the tablet
Rubber coated tips will hold tablet firm and stable
Easy access grip knobs located on the back of the cradle for quick release of tablet
Full access to all ports
Mounts in portrait or landscape orientation
Product weight: .8 lb / .36 kg

Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories

TBL-0002-16

Details

Part Number

RAM X-Grip Universal 12" / 30.5 cm Tablet Holder

VESA 75mm compatible
Minimum Tablet Width: 7.25” / 18.4 cm
Maximum Tablet Width: 8.75” / 22.2 cm
Maximum Tablet Length (WITHOUT additional included supports): Unlimited
Maximum Tablet Length (WITH additional included supports): 10.25” / 26 cm
Maximum Tablet Depth: 0.875″ / 2.2 cm
Includes Slide-In Mounting Adapter
Spring loaded cradle expands and contracts for perfect fit of the tablet
Rubber coated tips will hold tablet firm and stable
Easy access grip knobs located on the back of the cradle for quick release of tablet
Full access to all ports
Mounts in portrait or landscape orientation
Product weight: .8 lb / .36 kg

Note: Tablet is not included with product and must be mounted without skin, sleeve or case accessories

TBL-0002-17

Reset Choices Request More Info

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Approach

Our Expertise

Modalities

Care Area Solutions

IT and EMR Solutions

Medical Device Solutions

Arms

Carts and Roll Stands

Mounting Solutions

Jaco Mobile & Wall Mounted Workstations

Patient Engagement Overbed Table

Fetal Monitoring Workstations

Accessories

Approach

Modalities

Our Expertise

Technical Support

On-Site Services

Resource Library

Who We Are

News & Noteworthy

Create Datasheet

Ultrasound Tablet Roll Stand

Gel and Probe Cup Mounts

Recommended Accessories

Installation Guides

Create Datasheet

Ultrasound Tablet Roll Stand

Gel and Probe Cup Mounts

Recommended Accessories

Installation Guides

Create Product Datasheet

Email This Product Configuration

Product Information Request

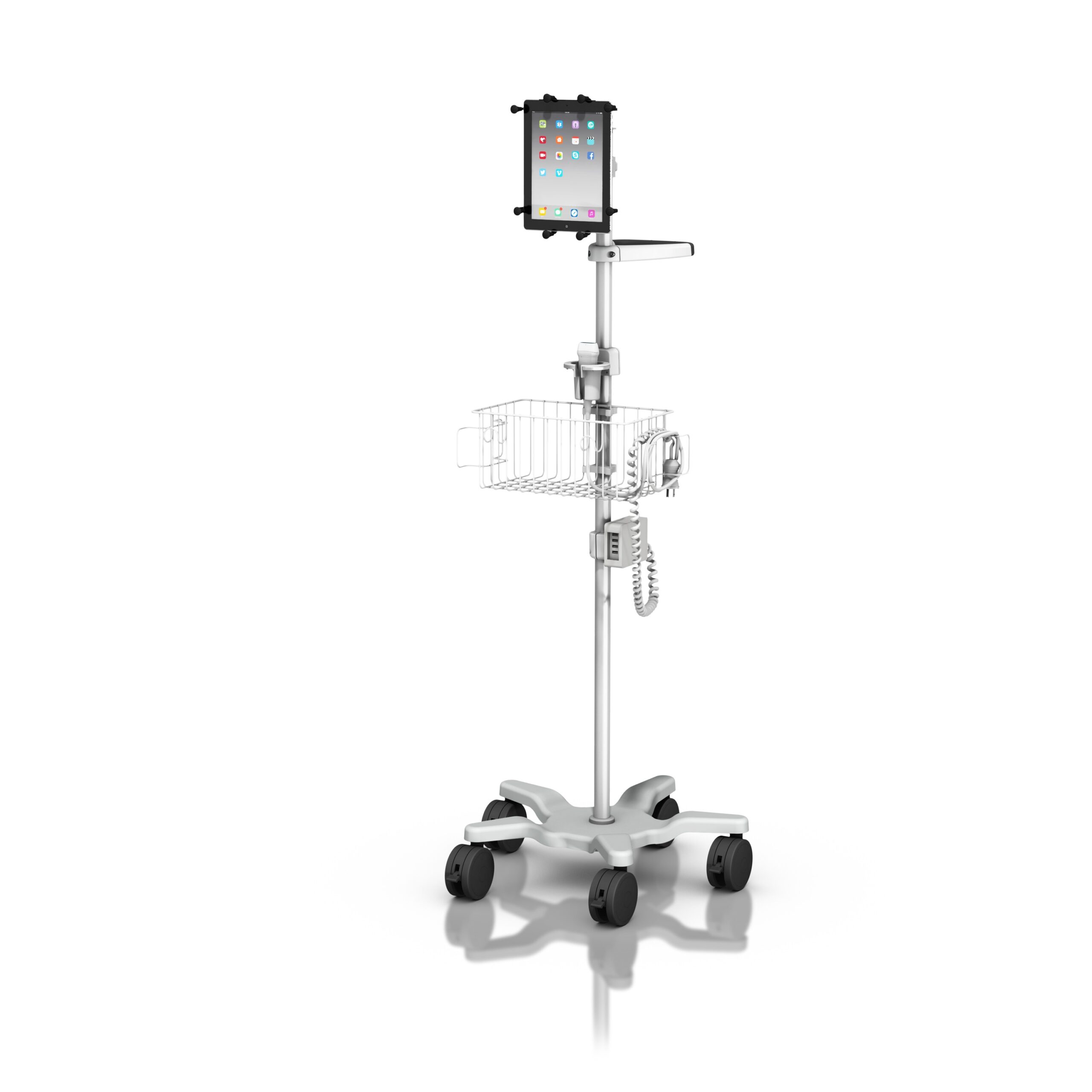

Probe Cup83 RS 0014 14 L

Probe Cup83 RS 0014 14 U

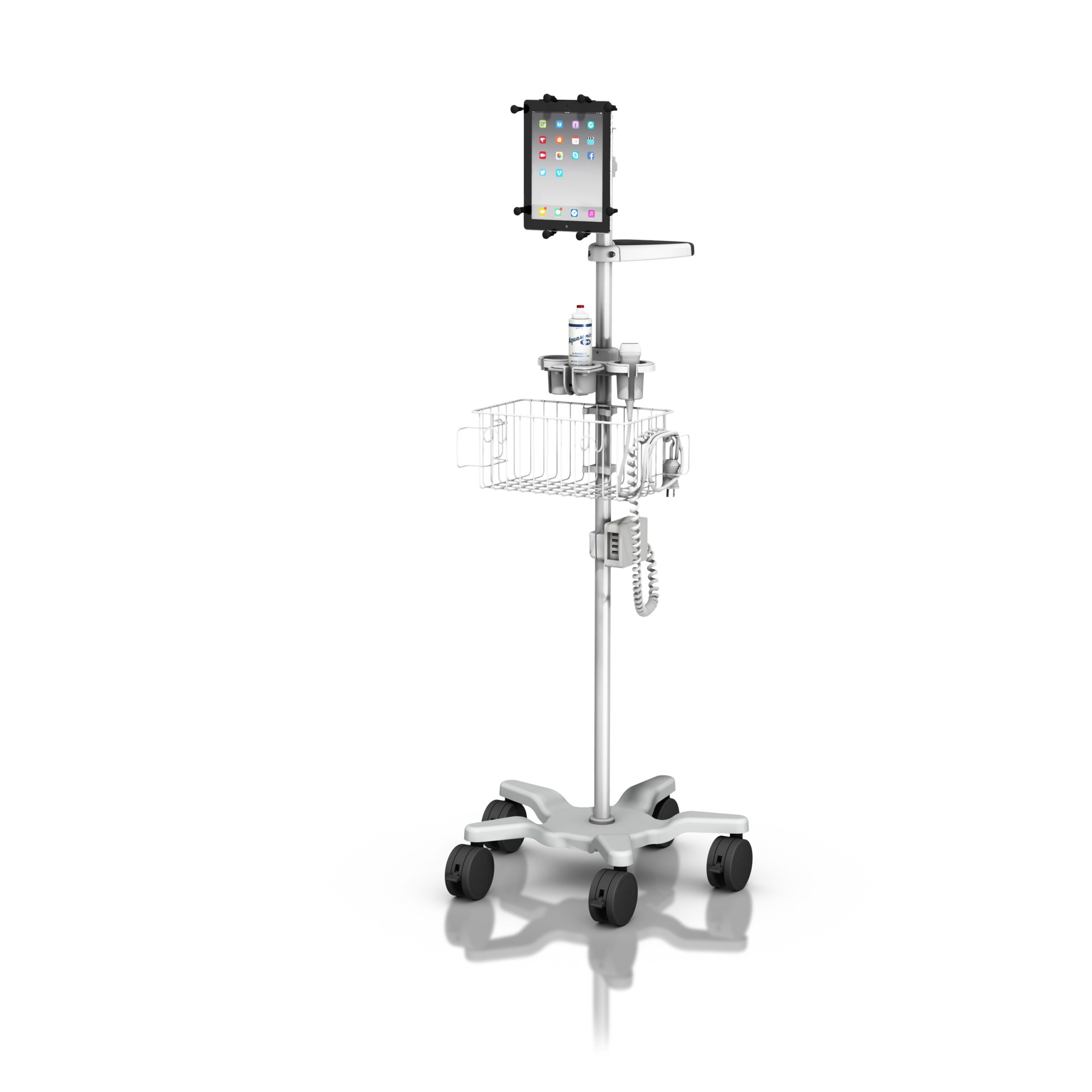

Probe Cup85 RS 0014 14 L

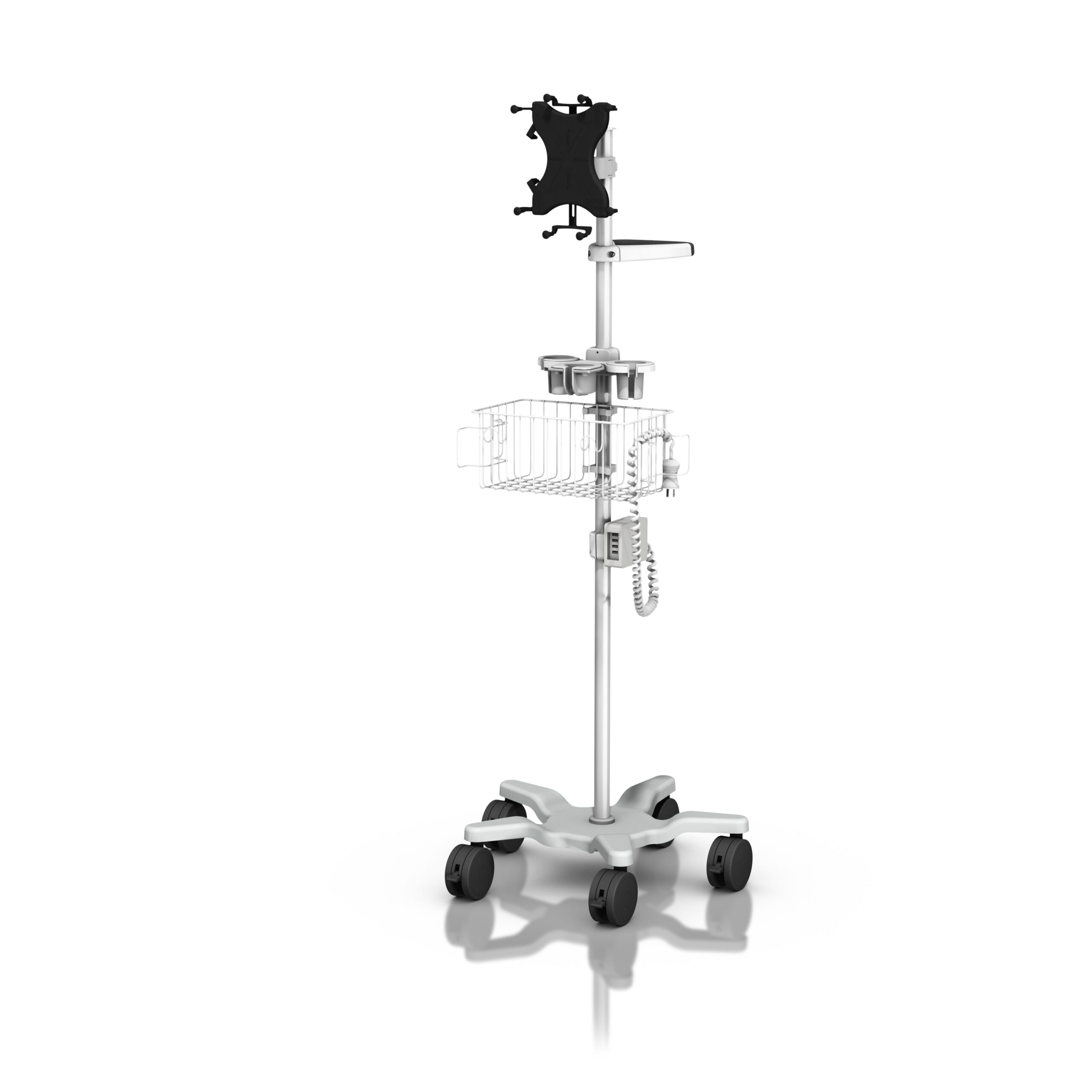

Probe Cup85 RS 0014 14 U

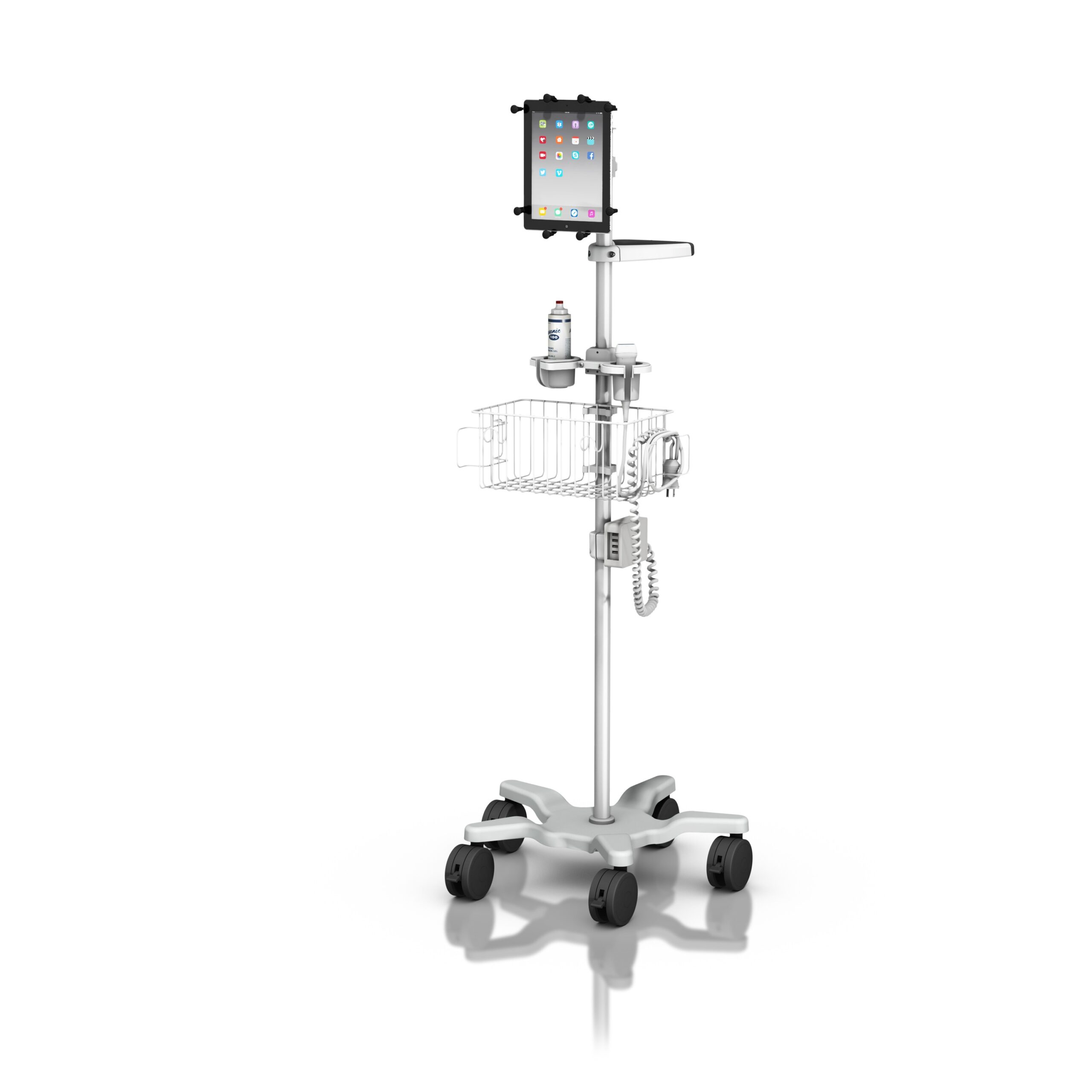

Probe Cup89 RS 0014 14 L

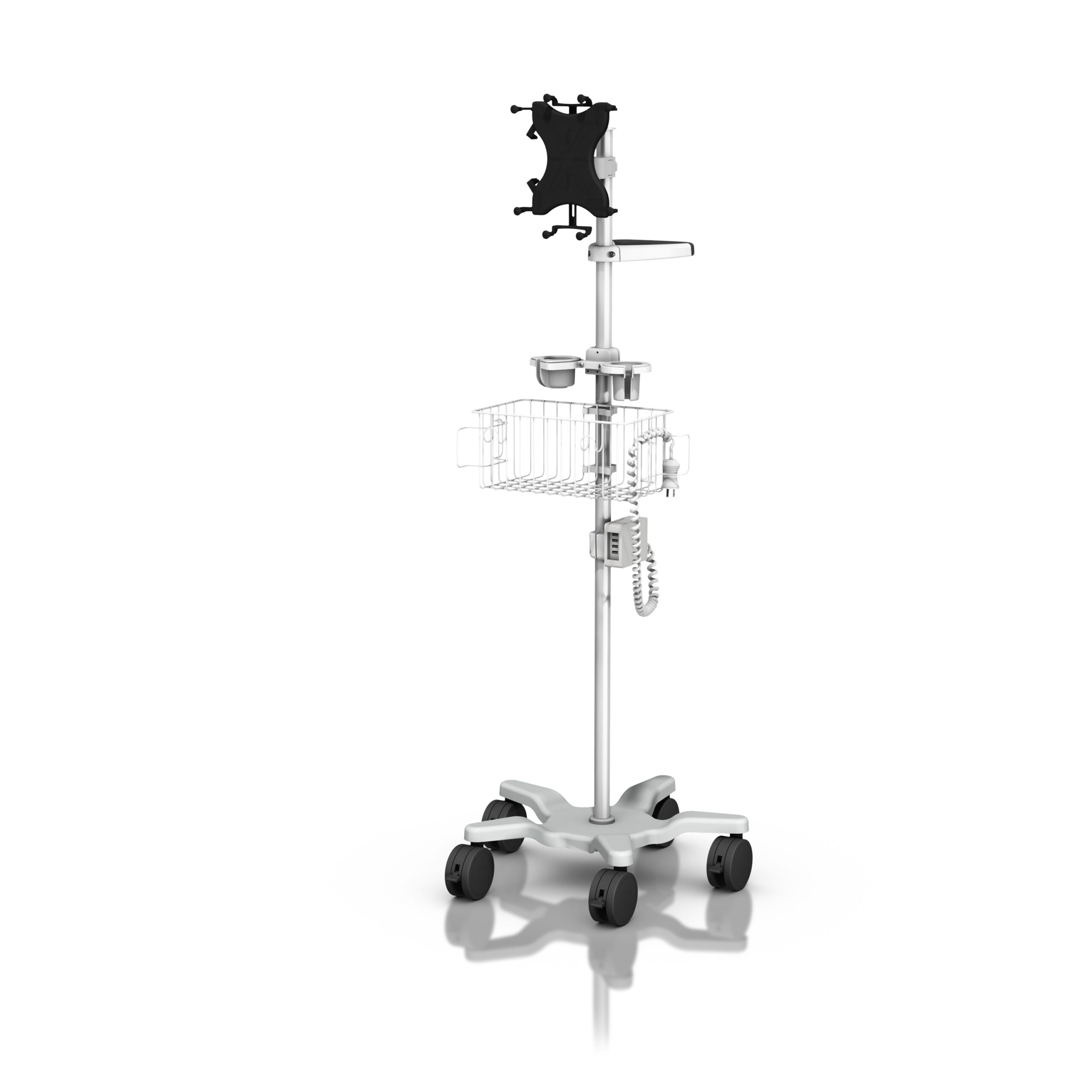

Probe Cup89 RS 0014 14 U
