Flush Mount with Tilt and Swivel

• Flush mount for areas with limited clearance or space
• Clearance from wall: 5.3″ / 13.5 cm
• Tilt/swivel adjustment
• VESA® FDMI™ 75/100 mm compatible
• Max. load, tilt mechanism: 30 lb / 13.6 kg
• Product Weight: 1.5 lb / .7 kg

Note: Channel sold separately

Tilt Only Flush Monitor Mount

• Flush mount for areas with limited clearance or space
• Clearance from wall: 1.3″ / 3.3 cm
• Tilt range: +/- 5 degrees (may be limited due to screen size)
• VESA® FDMI™ 75/100 mm compatible
• Max. load: 15 lb / 6.8 kg
• Weight: .5 lb / .2 kg

Fixed Flush Mount

• Flush mount for areas with limited clearance or space
• Clearance from wall: 1.6″ / 4.1 cm
• No swivel or tilt capability
• VESA® FDMI™ 75/100 mm compatible
• Max. load: 30 lb /13.6 kg
• Weight: 1 lb / .5 kg

Slide-Out VHRC/RC Keyboard Tray with Negative/Positive Tilt

Slide-Out VHRC/RC Keyboard Tray

VHRC Series Counterweight Kit

• 25 lbs/11.3 kg counterweight kit
• Required for VHRC/RC configurations with dual monitors or a patient monitor

16" / 40.6 cm M Series Pivot Arm with Slide-In Mounting Plate

• Offers a pivot point at the wall channel for lateral adjustability and tilt/swivel adjustment
• Features range of motion from flush to full extension, and cable management
• Slide-In Mounting Plate
• Accommodates back or bottom mounted devices
• Tilt Mechanism Maximum Load: 30 lbs / 13.6 kg
• Total Arm Maximum Load: 50 lb / 22.7 kg

Note: Channel sold separately

• Tilt Mechanism Maximum Load: 30 lbs / 13.6 kg
• Total Arm Maximum Load: 50 lb / 22.7 kg

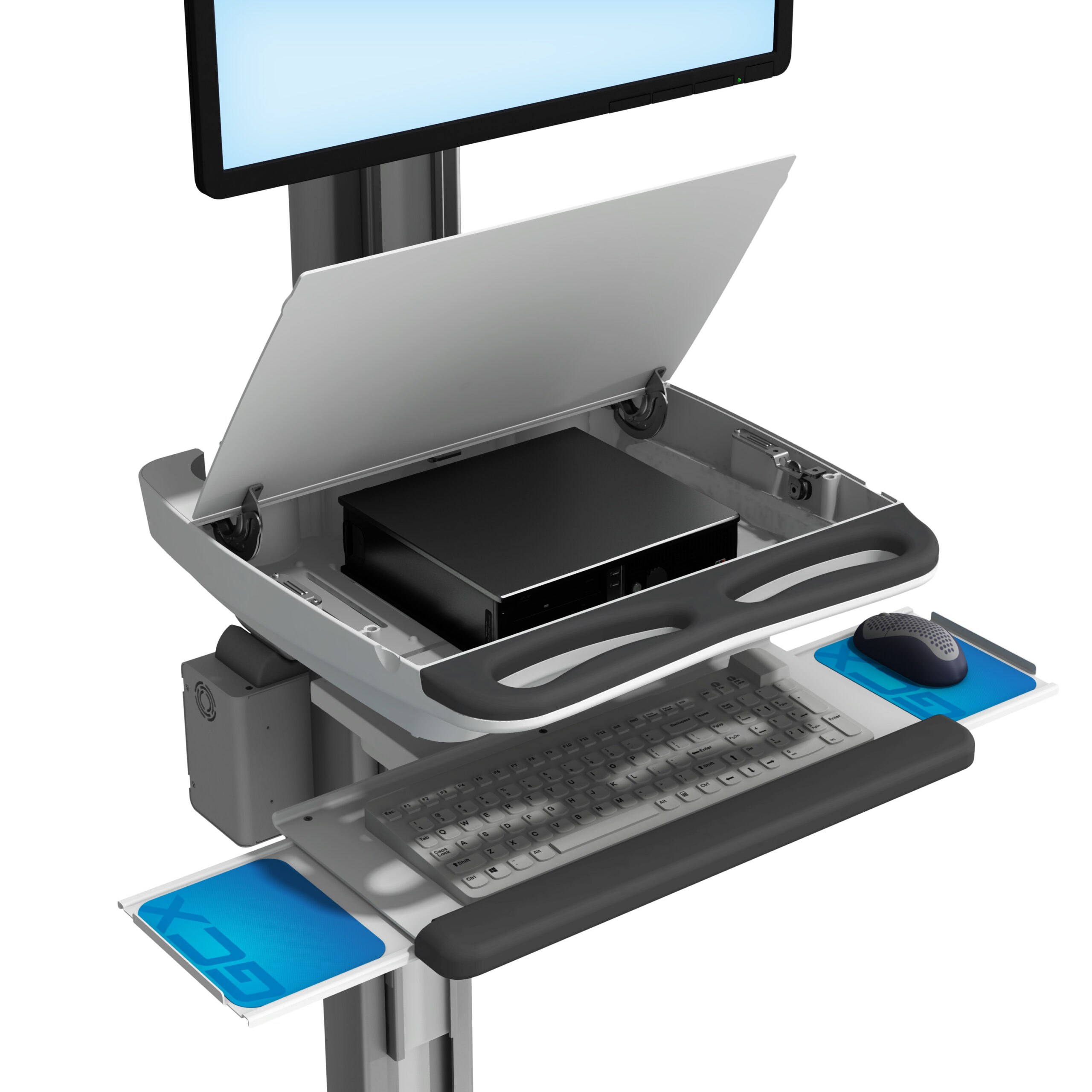

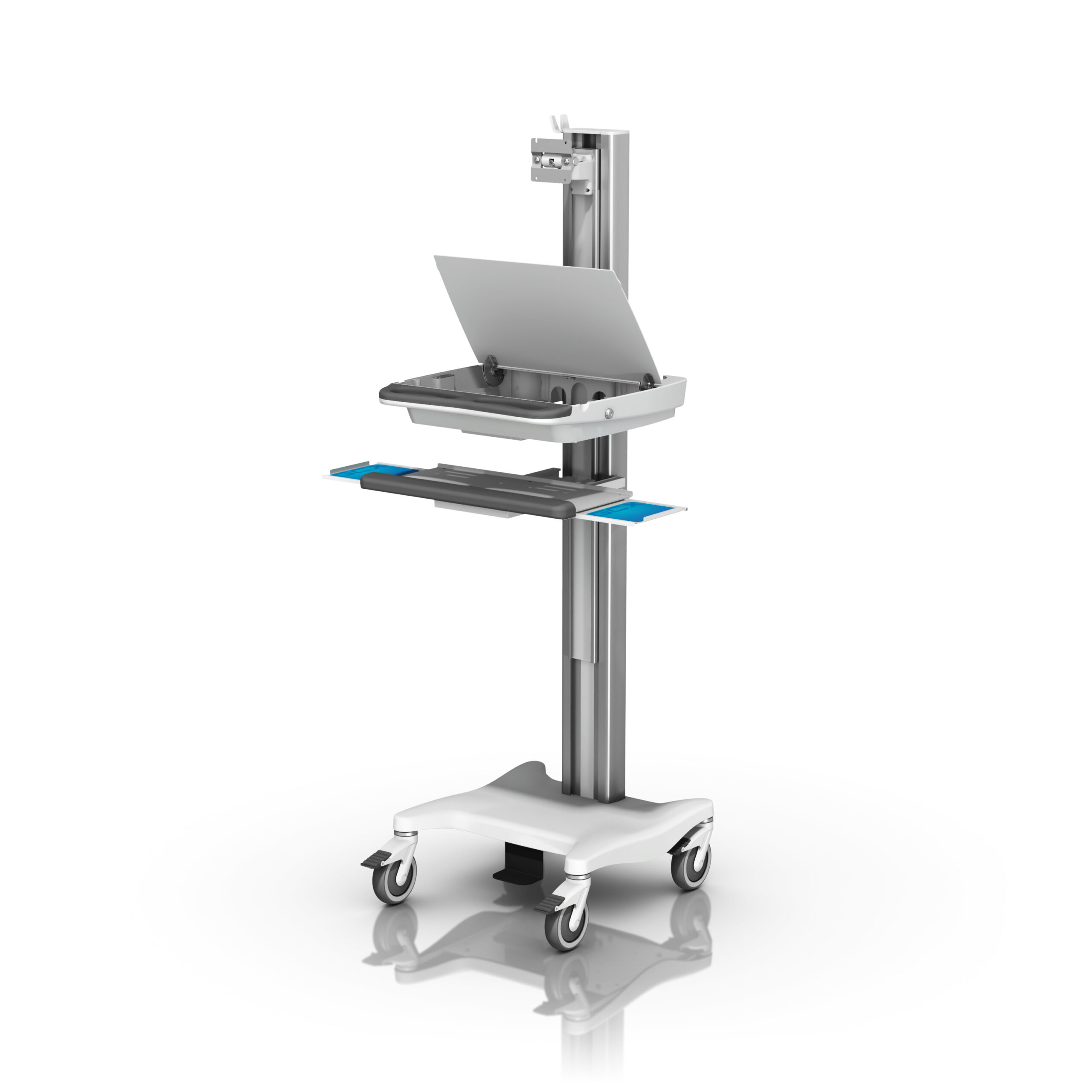

VHRC / RC Series Locking Enclosure with Flip-Up Work Surface

Locking Enclosure for Laptop with Work Surface

• Enables the Notebook to be secure and used with an external keyboard and mouse
• Work surface (forward of the display): 18.5 x 10.5″ / 47 x 26.7 cm/li>
• Max. laptop screen width (not diagonal measure): 16.25″ / 41.3 cm

Note: If using the Slim-Line base, contact GCX about external Keyboard options.

Monitor Handles

• Works with GCX display mounts to allow easy position adjustments for the display without having to grab the display enclosure
• 12 – 25″ / 30 – 63 cm Wide
• Vertical, lateral and tilt adjustments are facilitated by the padded grips located to the left and right sides
• Padded grip handles can be installed facing up or down
• Mounts between display and GCX mounting plate
• Product weight: 3.4 lb / 1.5 kg

• Works with GCX display mounts to allow easy position adjustments for the display without having to grab the display enclosure
• 12 – 25″ / 30 – 63 cm Wide
• Vertical, lateral and tilt adjustments are facilitated by the padded grips located to the left and right sides
• Padded grip handles can be installed facing up or down
• Mounts between display and GCX mounting plate
• Product weight: 3.4 lb / 1.5 kg

Channel Mount Dual Grip Handle

VHRC/RC Series Rear Column Dual Grip Handle

• Mounts to the VHRC Series rear column
• Weight: 1.2 lb / .54 kg

Channel Mount for 1.5 to 3"/3.8 to 7.6 cm wide CPU

• Max. load: 25 lb / 11.3 kg
• Max. height: 14″ / 35.6 cm
• Max. depth: 14″ / 35.6 cm
• Weight: 4.5 lb / 2 kg

Channel Mount for 3 to 4.5"/7.6 to 11.4 cm wide CPU

• Max. load: 25 lb / 11.3 kg
• Max. height: 14″ / 35.6 cm
• Max. depth: 14″ / 35.6 cm
• Weight: 5 lb / 2.3 kg

Channel Mount for 4.5 to 7"/11.4 to 17.8 cm wide CPU

• Max. load: 40 lb / 18.2 kg
• Max. height: 18″ / 45.7 cm
• Max. depth: 18″ / 45.7 cm
• Weight: 16 lb / 7.3 kg
• Note: Requires a channel longer than 7″ / 17.8 cm to accommodate two (2) slides

Channel Mount for 7 to 9.5"/17.8 to 24.1 cm wide CPU

• Max. load: 40 lb / 18.2 kg
• Max. height: 18″ / 45.7 cm
• Max. depth: 18″ / 45.7 cm
• Weight: 18 lb / 8.2 kg
• Note: Requires a channel longer than 7″ / 17.8 cm
• Note: For rear VHRC/RC configurations, requires two (2) Rear Cleats

Flush CPU Channel Mount with 5"/12.7cm Slide-in Mounting Plate

• Works with GCX compatible Slide-in Adapter Plates
• Quick Release for Servicing
• Includes set screw to prevent CPU from being removed
• Maximum Weight: 22.5 lbs/ 10.2 kg

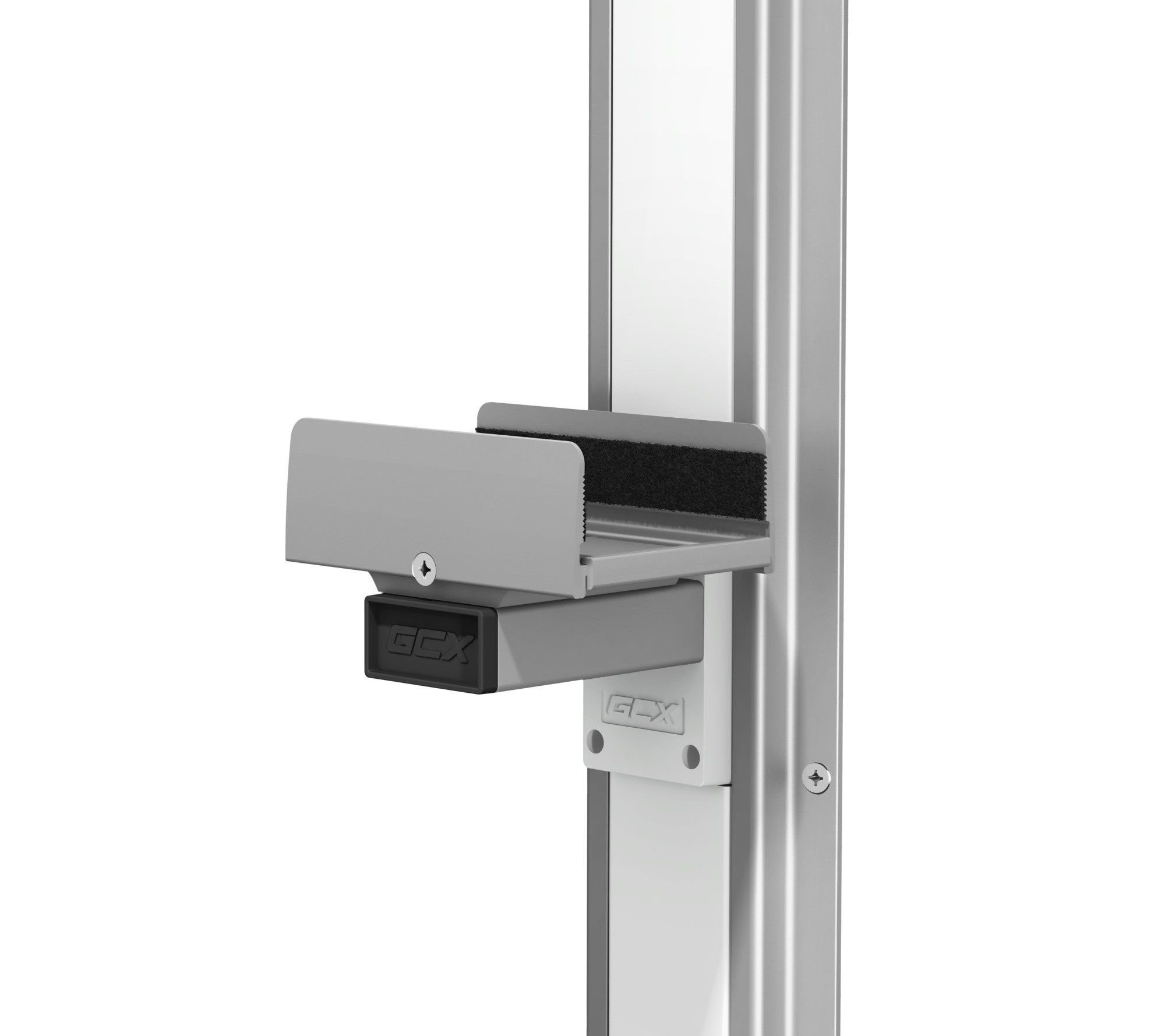

Flush Channel Mount for 3 to 5"/7.6 to 12.7 cm wide UPS units

Flush Channel Mount for 5 to 8"/12.7 to 20.3 cm wide UPS units

20 to 30 lbs/9.1 to 13.6 kg Weight Range

40 to 50 lbs/18.1 to 22.7 kg Weight Range

50 to 60 lbs/22.7 to 27.2 kg Weight Range

60 to 70 lbs/27.2 to 31.8 kg Weight Range

VHRC Rear Column Accessory Track Mounting Adapter

• Adapter plate for rear column mounting

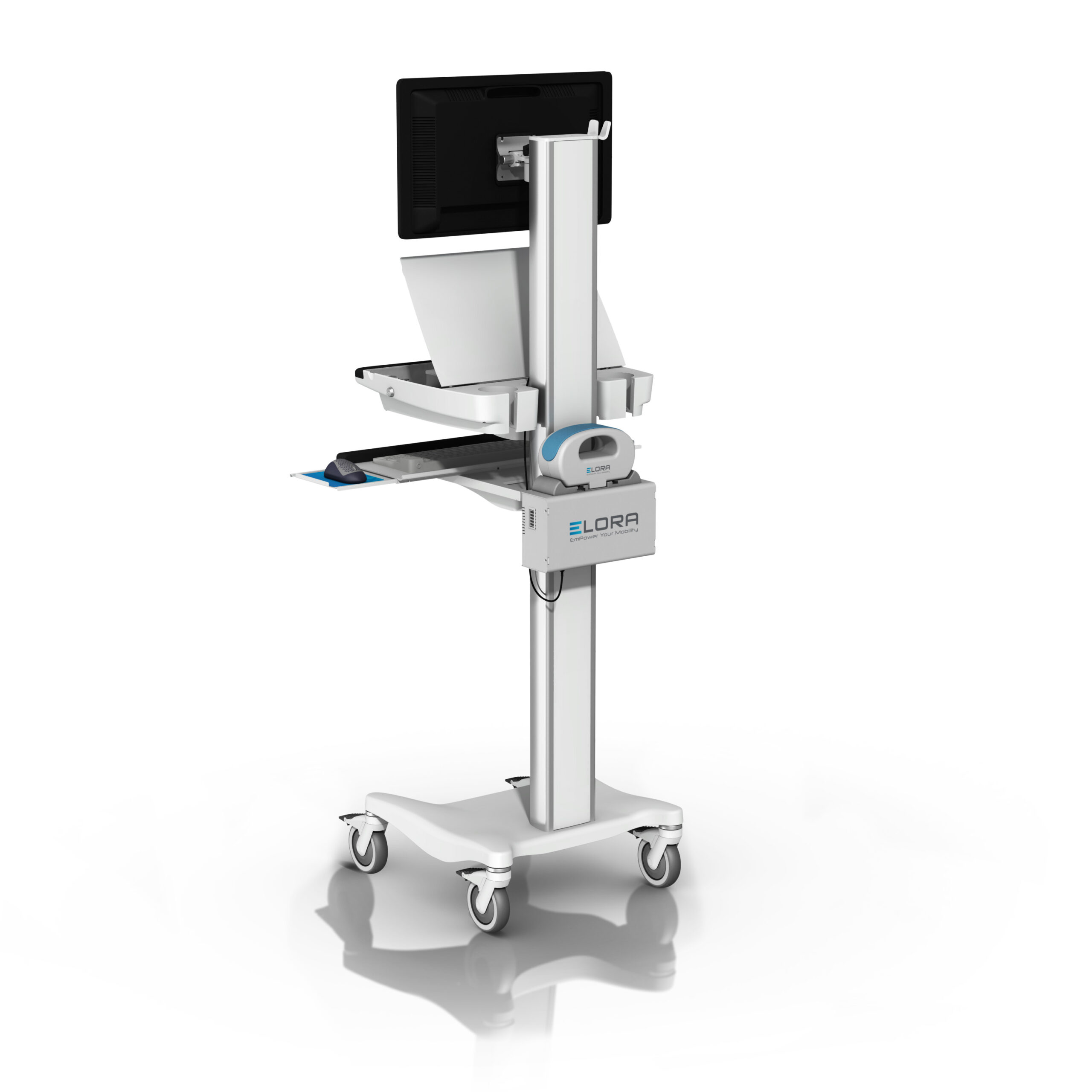

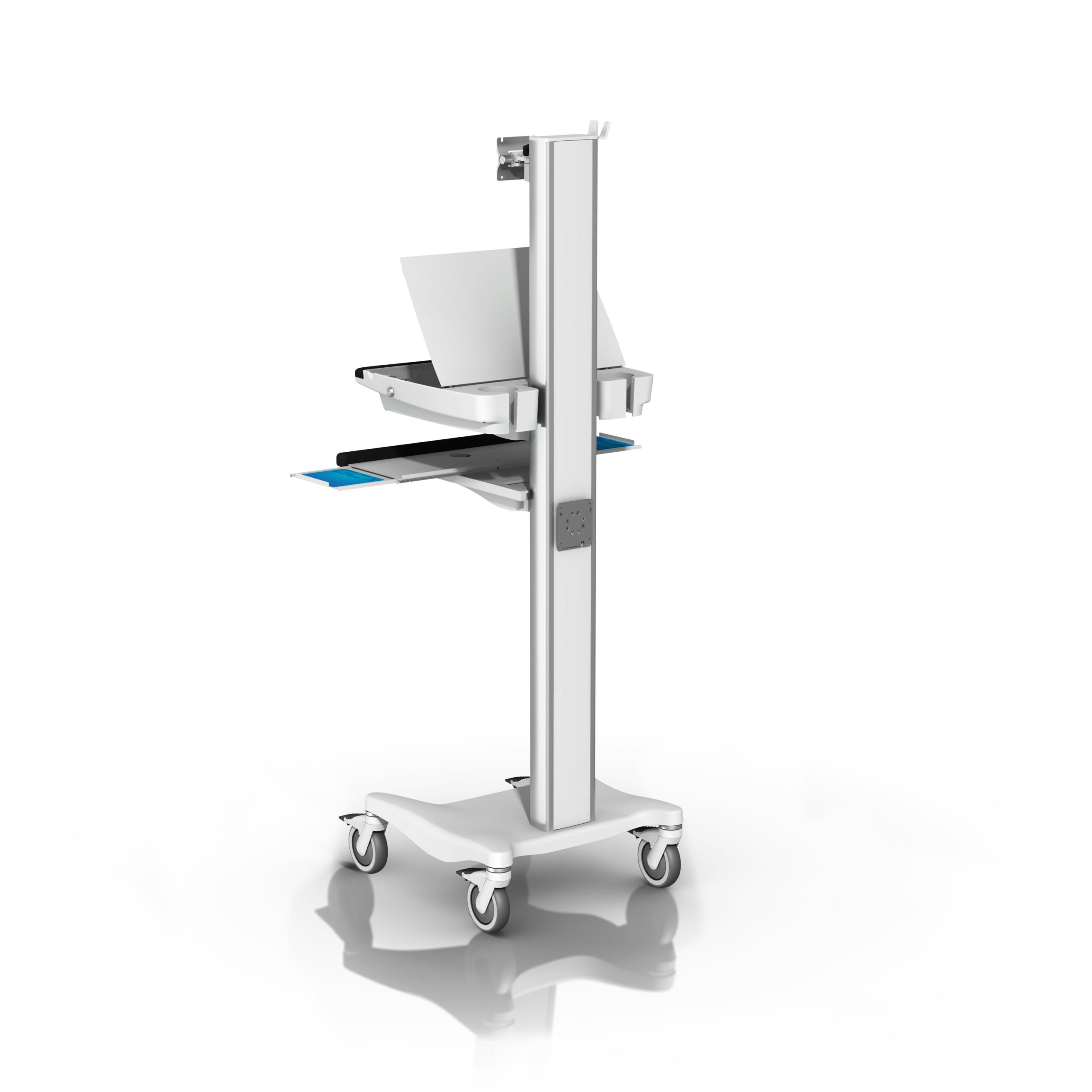

Flush Channel / Rear VHRC Mount for Anton Bauer Elora 240 Battery Interface

Cable Cleat for VHRC/RC Rear Column Accessory Track

• Cable wrap for the rear accessory track of the VHRC/RC

Cable Cleat Channel Mount

• Mounts in any GCX Channel
• Cord Wrap mounts horizontally
